Chillers are the backbone of cooling systems in industries, commercial buildings, and even large residential complexes. But not all chillers are the same—they come in various types, each designed for specific applications and operational needs. Whether you’re an HVAC professional, facility manager, or business owner, knowing the types of chillers available can help you make informed decisions about efficiency, cost, and sustainability. In this guide, we break down the key categories of chillers and their unique advantages.

What is a Chiller?

A chiller is a machine that removes heat from a liquid (usually water or a water-glycol mixture) via vapor compression or absorption cycles. This cooled liquid is then circulated to absorb heat from industrial processes, HVAC systems, or equipment, ensuring temperature control. The two primary factors that differentiate chillers are:

1. Condensation Method: How the chiller dissipates heat (air-cooled vs. water-cooled).
2. Compressor Technology: The mechanism used to compress refrigerant (centrifugal, screw, scroll, etc.).

Types of Chillers by Condensation Method

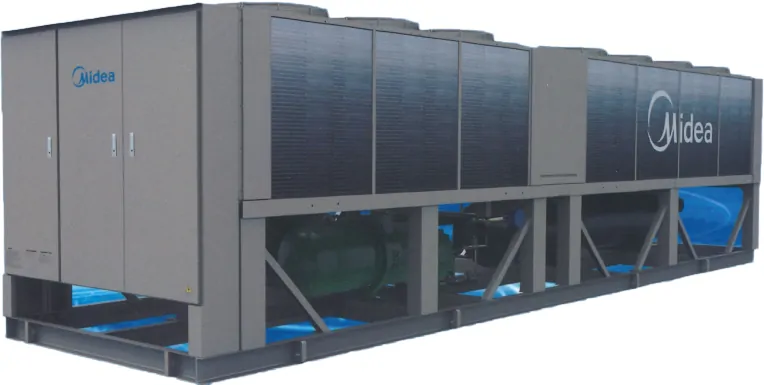

A. Air-Cooled Chillers
Air-cooled chillers use ambient air to dissipate heat from the refrigerant. They feature condenser coils and fans that blow air over these coils to cool the refrigerant.

Key Features:

• No cooling tower required: Ideal for locations with water scarcity.
• Lower upfront cost: Simpler installation and fewer components.
• Higher energy consumption: Less efficient than water-cooled models in hot climates.

Applications:

• Small to medium commercial buildings (offices, retail stores).
• Rooftop installations where space is limited.

B. Water-Cooled Chillers
Water-cooled chillers use water from a cooling tower to remove heat from the refrigerant. They are more efficient than air-cooled systems but require access to a reliable water source.

Key Features:

• Higher efficiency: Better performance in large-scale or high-heat applications.
• Longer lifespan: Typically more durable with proper maintenance.
• Higher installation cost: Requires cooling towers, pumps, and piping.

Applications:

• Large industrial facilities (manufacturing plants, data centers).
• Hospitals and universities with centralized cooling systems.

Types of Chillers by Compressor Technology

A. Centrifugal Chillers
Centrifugal chillers use a rotating impeller to compress refrigerant, making them ideal for large cooling demands.

Key Features:

• High capacity: Suited for cooling large buildings (e.g., airports, stadiums).
• Energy-efficient at full load: Operate best under consistent, heavy workloads.
• Complex maintenance: Requires specialized expertise.

B. Screw Chillers
Screw chillers utilize twin helical rotors to compress refrigerant. They balance efficiency and flexibility.

Key Features:

• Mid- to large-scale cooling: Common in industrial and commercial settings.
• Variable load efficiency: Performs well even at partial capacity.
• Durable design: Fewer moving parts reduce wear and tear.

C. Scroll Chillers
Scroll chillers employ two spiral-shaped scrolls (one fixed, one orbiting) to compress refrigerant.

Key Features:

• Compact and quiet: Ideal for small spaces like offices or supermarkets.
• Low maintenance: Simple design with minimal components.
• Limited capacity: Best for light to moderate cooling needs.

D. Reciprocating Chillers
Reciprocating chillers use pistons to compress refrigerant, similar to a car engine.

Key Features:

• Affordable upfront cost: Suitable for budget-conscious projects.
• Modularity: Capacity can be adjusted by activating/deactivating pistons.
• Higher noise/vibration: Less common in modern installations due to efficiency concerns.

E. Absorption Chillers
Absorption chillers use heat (e.g., steam, waste heat, or natural gas) instead of mechanical compressors to drive the refrigeration cycle.

Key Features:

• Eco-friendly operation: Use water as a refrigerant and reduce electricity consumption.
• High upfront cost: Ideal for facilities with waste heat recovery systems.
• Common in sustainable projects: Popular in green buildings and industrial plants.

FAQs About Chiller Types
Q: Which chiller type is most energy-efficient?
A: Water-cooled centrifugal chillers are typically the most efficient for large-scale applications.

Q: Can absorption chillers replace traditional models?
A: Yes, if your facility has access to waste heat or natural gas, absorption chillers offer a sustainable alternative.

Q: Are air-cooled chillers noisy?
A: They can be louder than water-cooled systems due to fan operation, but modern models include noise-reduction features.

Conclusion
Understanding the types of chillers is critical for optimizing performance, reducing costs, and meeting sustainability goals. Whether you need a compact scroll chiller for a small office or a robust centrifugal system for an industrial plant, selecting the right type ensures reliable cooling tailored to your needs.

Need help choosing a chiller or need service for a chiller? Consult Triair Engineering Sdn Bhd to assess your requirements and recommend the ideal system for your application.
